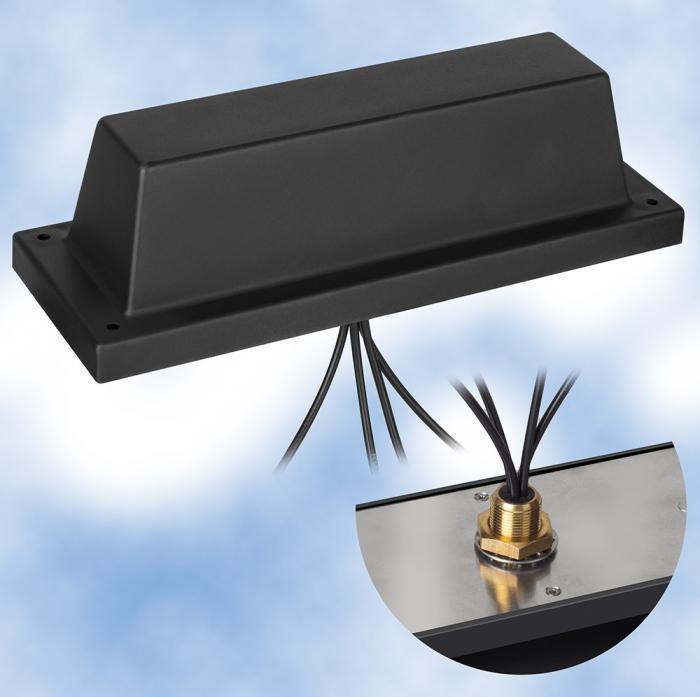

Badland unveils its August 2024 lineup, offering industry-leading antennas for GSM, 3G, and IoT applications. These products are crafted to ensure high performance, reliability, and seamless integration across various networks. Whether for urban or remote use, Badland antennas deliver consistent connectivity.
Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / GPS / 5G LTE Antennas / GNSS / GLONASS
Mountings: Fixed Body Mount
Polarity: Vertical or Horizontal
Gain: 3 dbi
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 55mm / Width: 70 mm / Length: 194 mm / Diameter: N/A
Cable: 3.00 metres of URM76 or RG174
Connector: To Be Specified
Power Handling: 40 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
ID : MIMOTOBYANTX4

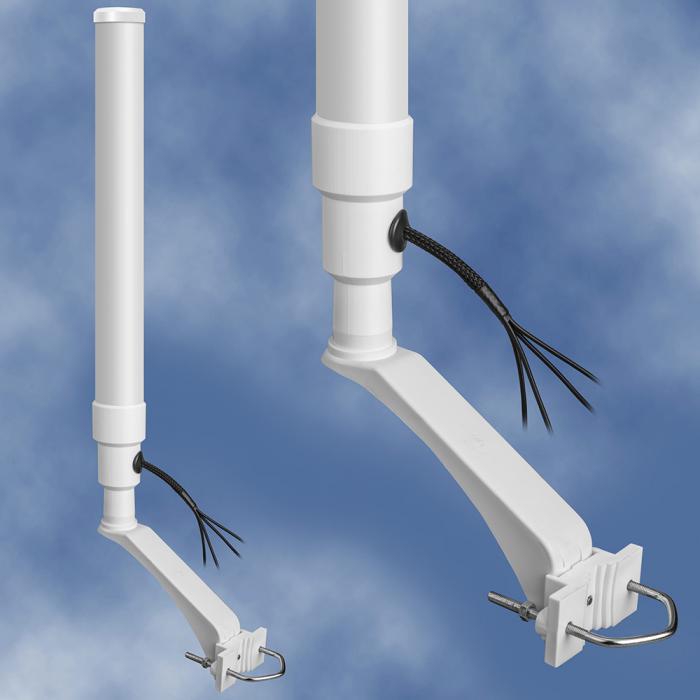

1Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE
Mountings: Brackets / Fixed Mounted Base Station
Polarity: Vertical
Gain: 6db
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 586 mm / Width: / Length: / Diameter: 2
Cable: 3.00 metres of RG174
Connector: To Be Specified
Power Handling: 50 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
ID : 4G/5GMIMOCOLW MASTKITX4

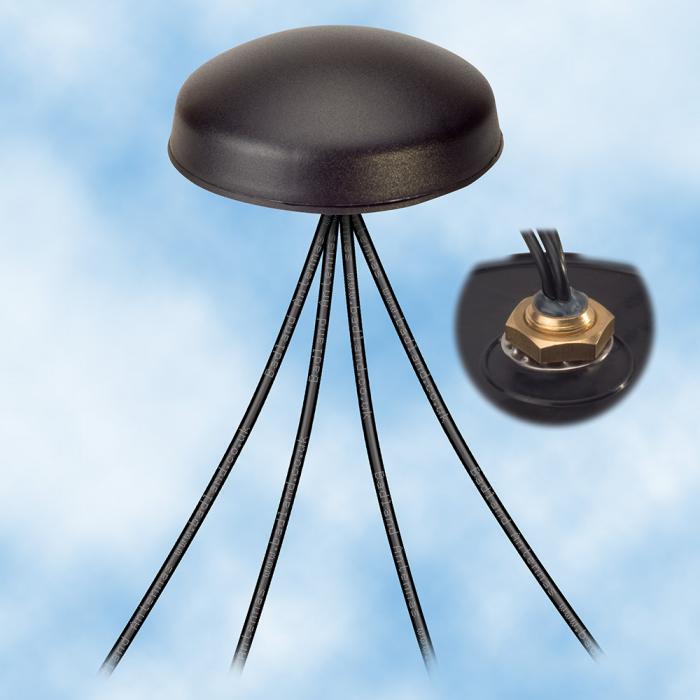

2Frequency: 3G / 4G /GPRS / GSM / LTE / GSM / GPS / Blueooth / WiFi / WI-MAX / 5G LTE Antennas / GNSS / GLONASS / LTE
Mountings: Fixed Body Mount
Polarity: Horizontal
Gain: 2G/3G/4G - 3 dbi / GPS/GNSS - 18 db or 27 db
VSWR: 1 .5 : 1
Dimensions: Height: 3 cm / Width: N/A / Length: N/A / Diameter: 10 cm
Cable: 5.00 metres of RG174
Connector: To Be Specified
Power Handling: 25 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
ID : 3G4G5GMIMOWIFIGPSDOME
3
