Discover Badland’s latest innovations in the July 2024 collection. Engineered for cutting-edge applications across GSM, Wi-Fi, and LTE frequencies, these antennas are built to perform in diverse environments. With robust designs and superior efficiency, they are the go-to choice for modern communication networks.
Frequency: 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas
Mountings: Fixed Mounted Base Station / Brackets
Polarity: Vertical or Horizontal
Gain: 6db
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 586 mm / Width: / Length: 621 mm / Diameter: 5 cm
Cable: 3.00 metres of URM76 or RG174
Connector: To Be Specified
Power Handling: 50 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP68
ID : 4G/5G/MIMOCOLW/BX4
1Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas
Mountings: Mag Mount
Polarity: Vertical or Horizontal
Gain: 6db
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 671 mm with tilt & swivel / Width: N/A / Length: N/A / Diameter: 5 cm
Cable: 3.00 metres of URM76 or RG174
Connector: To Be Specified
Power Handling: 50 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP68
ID : 4G5GMIMOMAGT/SX4

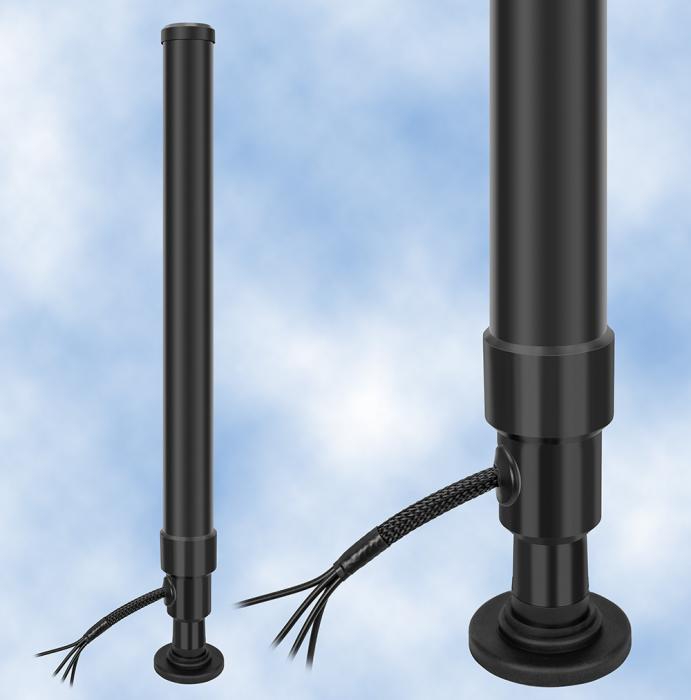

2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas
Mountings: Mag Mount
Polarity: Vertical or Horizontal
Gain: 6db
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 606 mm with MAG / Width: / Length: / Diameter: 5 cm
Cable: 3.00 metres of URM76 or RG174
Connector: To Be Specified
Power Handling: 40 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP68
ID : 4G5GMIMOCOLMAG
