June 2025: MIMO Innovation
Here at Badland, we're always developing new and exciting products... and these are no different.

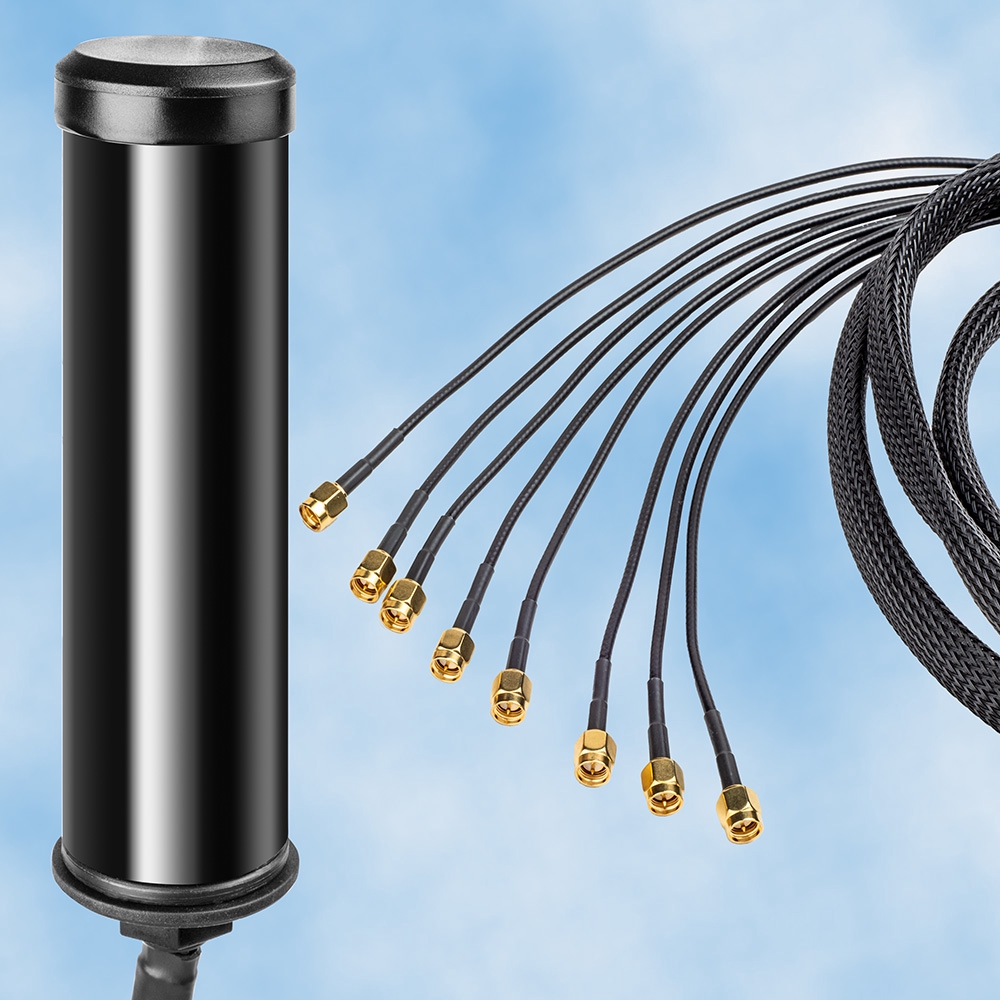

These are our NEW 8 way MIMO antennas
8x8 MIMO omnidirectional antenna that provides broad coverage from 600-6000MHz and backwards compatible to support 3G/2G networks as well at Cat-M and NB-IoT.
The offer a variety of cable lengths and are terminated with SMA connectors with LBC100 cable.
Don't hesitate to get in touch or look at the products below to find out more!
Frequency: 5G LTE Antennas / 3G / 4G /GPRS / GSM / LTE / LTE / LoRa WAN
Mountings: Fixed Body Mount
Polarity: Vertical
Gain: 5 dbi
VSWR: 1.2: 1 @frequency
Dimensions: Height: 205 mm / Width: / Length: / Diameter: 52mm
Cable: 3 METRES metres of LBC100
Connector: To Be Specified
Power Handling: 40 watts
Impedance: 50 ohm
Operating Temperature: -40° / + 85°C
Protection: IP67

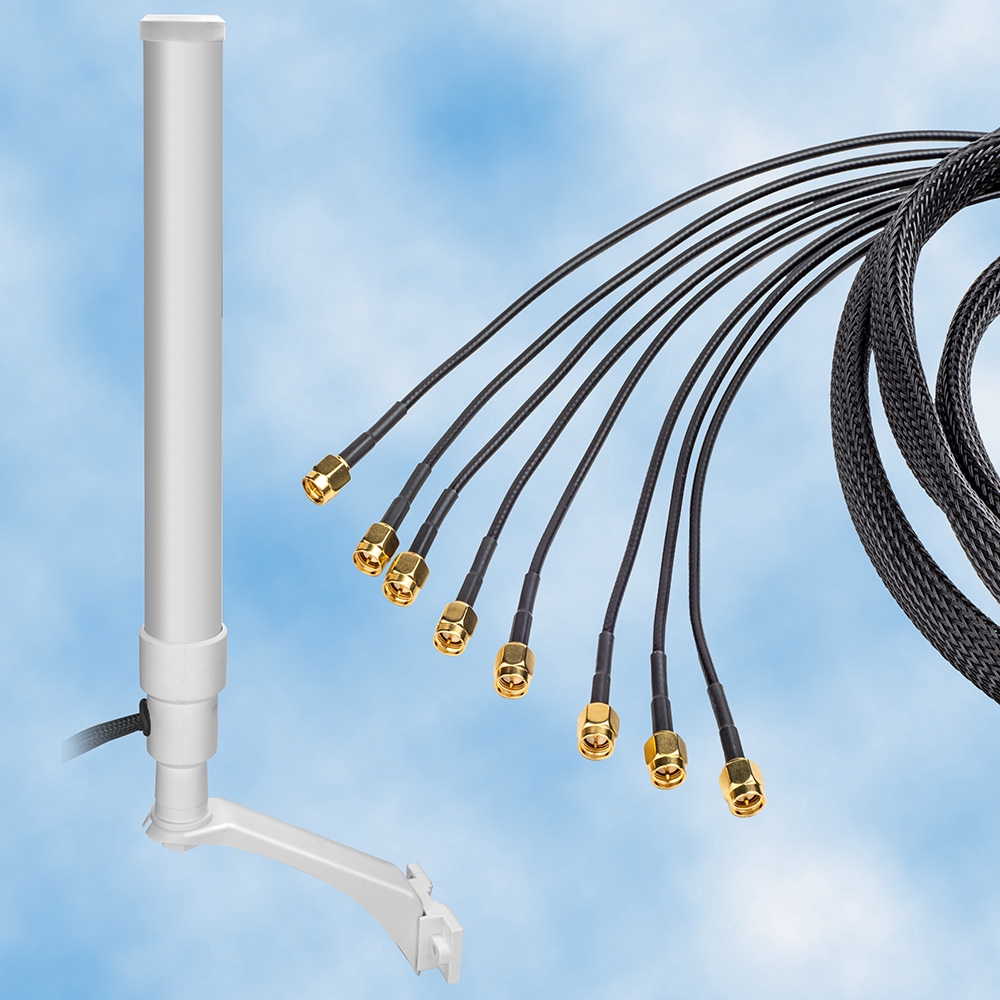

OPTIMISMIMOX8B/M
ID : OPTIMISMIMOX8
1Frequency: 3G / 4G /GPRS / GSM / LTE / LoRa WAN / GSM / 5G LTE Antennas / LTE
Mountings: Fixed Mounted Base Station / Brackets
Polarity: Vertical
Gain: 5 dbi
VSWR: 1.2: 1 @frequency
Dimensions: Height: 205 mm / Width: / Length: / Diameter: 52mm
Cable: 3 METRES metres of LBC100
Connector: To Be Specified
Power Handling: 40 watts
Impedance: 50 ohm
Operating Temperature: -40° / + 85°C
Protection: IP67
OPTIMISMIMOX8WB
ID : OPTIMISMIMOX8WB
2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE
Mountings: Fixed Mounted Base Station / Brackets
Polarity: Vertical
Gain: 8 dbi
VSWR: 1.2: 1 @frequency
Dimensions: Height: 526 mm / Width: / Length: / Diameter: 52mm
Cable: 3 METRES metres of LBC100
Connector: To Be Specified
Power Handling: 50 WATTS
Impedance: 50 ohm
Operating Temperature: -40° / + 85°C
Protection: IP67

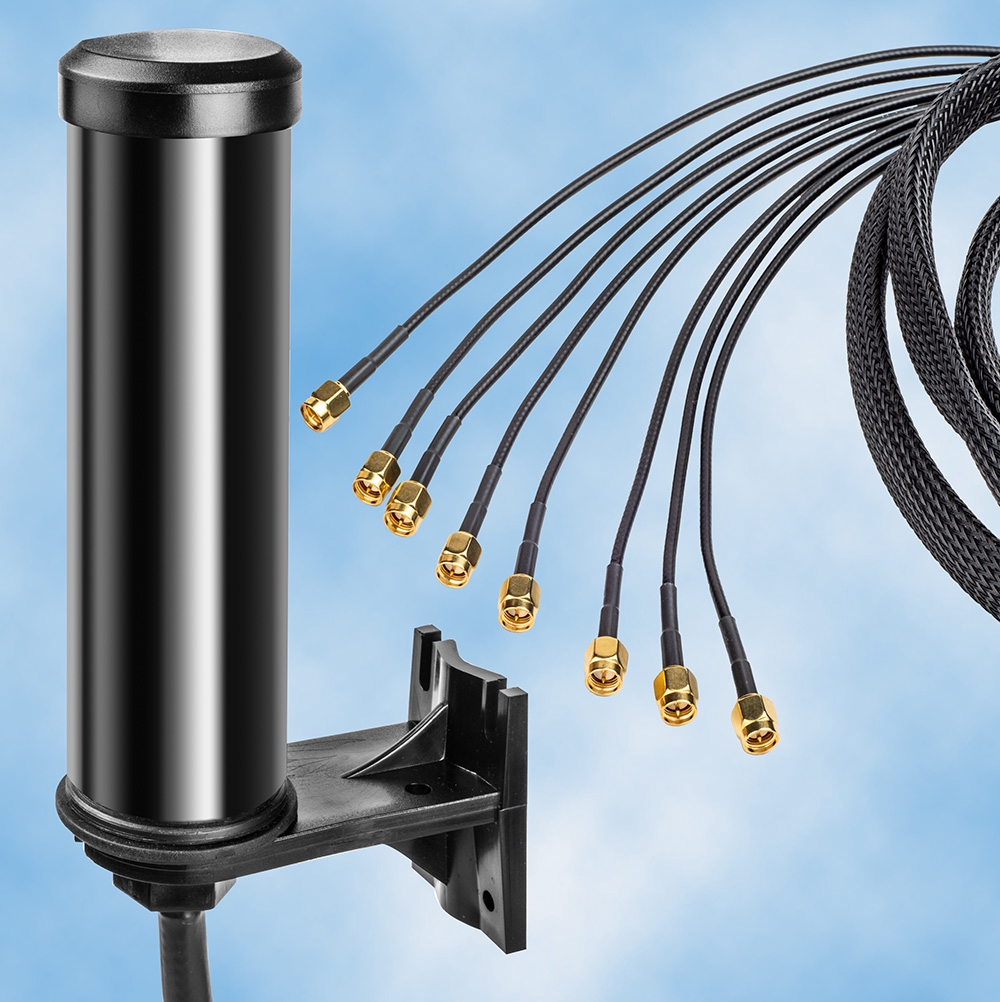

HI GAIN 4G 5G MIMO COLINEAR WITH X 8 CABLES WITH WALL BRACKET
ID : 4G5GMIMOCOLX8WB
