Step into the future of connectivity with Badland’s March 2024 offerings. Featuring high-gain antennas with omnidirectional polarity and IP67-rated protection, this range ensures reliable communication in challenging conditions. From industrial to field applications, Badland antennas are engineered for excellence.

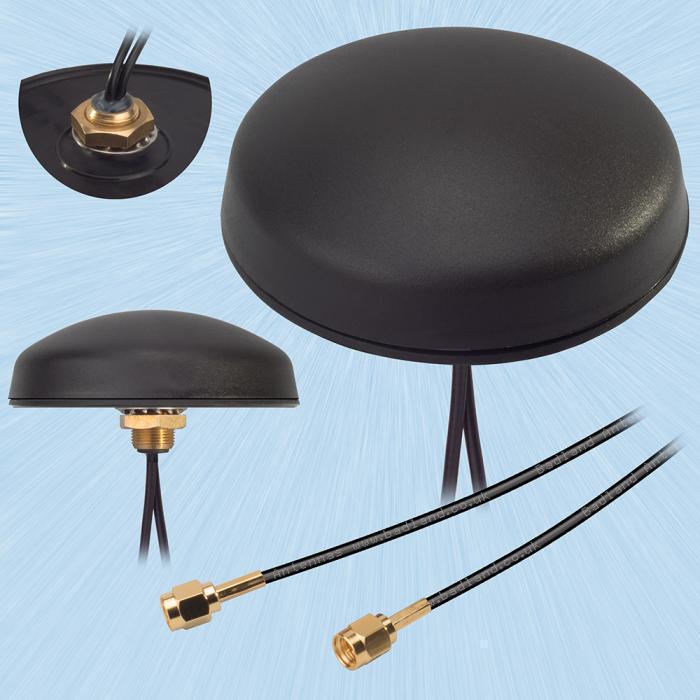

Frequency: 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE
Mountings: Fixed Body Mount
Polarity: Vertical or Horizontal
Gain: 3 dBi
VSWR: 1.5 : 1
Dimensions: Height: 25 mm / Width: N/A / Length: N/A / Diameter: 100 mm
Cable: 5.00 metres of RG174
Connector: To Be Specified
Power Handling: 20 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
ID : 3G4G5GMIMODOME

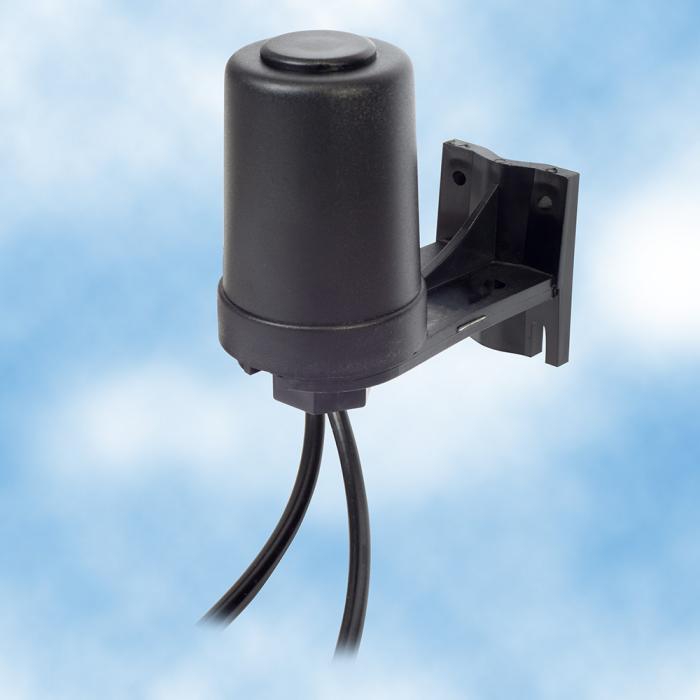

1Frequency: 3G / 4G /GPRS / GSM / LTE / Blueooth / WiFi / WI-MAX / LTE
Mountings: Fixed Mounted Base Station / Brackets
Polarity: Omnidirectional
Gain: 3 dbi
VSWR: 1.7 :1
Dimensions: Height: 82 mm / Width: N/A / Length: N/A / Diameter: 52 mm
Cable: 5.00 metres of RG58
Connector: To Be Specified
Power Handling: 20 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
ID : MIMOCONEBRAC
2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / Blueooth / WiFi / WI-MAX / 5G LTE Antennas / LTE
Mountings: Fixed Mounted Base Station / Brackets
Polarity: Vertical
Gain: 7 dbi
VSWR: 1.5 : 1 across spectrum
Dimensions: Height: 550 mm / Width: N/A / Length: N/A / Diameter: 1
Cable: 5.00 metres of URM76
Connector: To be specified
Power Handling: 35 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
ID : MIMOCOLBRACBX2
