May 2025 - New Optimus Range

May 2025:

We've been developing some cutting edge technology over the past few months and are very proud to introduce our new Optimus range as a result! These are absolutely ideal for data transfer through all the networks for utilities.

As always, our products are truly ours. From design concepts to completed products, and you can now check out an idea of what our process is like in our new video. Find it on our Linked In!

Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE

Mountings: Fixed Body Mount

Polarity: Vertical

Gain: 5 dbi

VSWR: 1.2 : 1 @ tuned frequency

Dimensions:  Height: 170 mm / Width: N/A / Length: N/A / Diameter: 55 mm

Cable: 3.00 metres of LBC100

Connector: To Be Specified

Power Handling: 40 watts

Impedance: 50 ohms

Operating Temperature: -40° / +85°C ( -40° / 185°F )

Protection: IP67

OPTIMUS MIMO BODY MOUNT 4G/ 5G / LTE

ID : OPTIMUSMIMOB/M

1

Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE

Mountings: Brackets / Fixed Mounted Base Station

Polarity: Vertical

Gain: 5 dbi

VSWR: 1.2 : 1 @ tuned frequency

Dimensions:  Height: 170 mm / Width: N/A / Length: N/A / Diameter: 55 mm

Cable: 3.00 metres of LBC100

Connector: To Be Specified

Power Handling: 40 watts

Impedance: 50 ohms

Operating Temperature: -40° / +85°C ( -40° / 185°F )

Protection: IP67

OPTIMUS MIMO 4G/5G/LTE ANTENNA WITH WALL BRACKET

ID : OPTIMUSMIMOX4W/B

2

Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / Blueooth / WiFi / WI-MAX / 5G LTE Antennas / LTE

Mountings: Brackets

Polarity: Vertical

Gain: 5 dbi

VSWR: 1.2 : 1 @ tuned frequency

Dimensions:  Height: 170 mm / Width: N/A / Length: N/A / Diameter: 55 mm

Cable: 3.00 metres of LBC100

Connector: To Be Specified

Power Handling: 40 watts

Impedance: 50 ohms

Operating Temperature: -40° / +85°C ( -40° / 185°F )

Protection: IP67

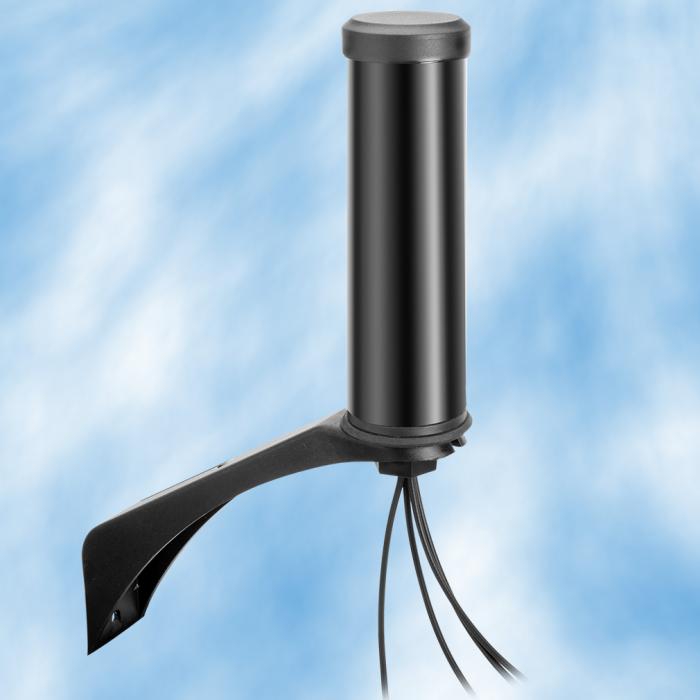

OPTIMUS MIMO 4G/5G/LTE ANTENNA WITH SEA EAGLE BRACKET

ID : OPTIMUSMIMOX4SEAEAGLE

3
