As Summer winds down and September begins, Badland has you covered this Autumn! Check out our featured products below: Our antennas offer unparalleled reliability whilst also being extremely versatile. Get in touch today to see how we could help you or browse our website to view all of our products!

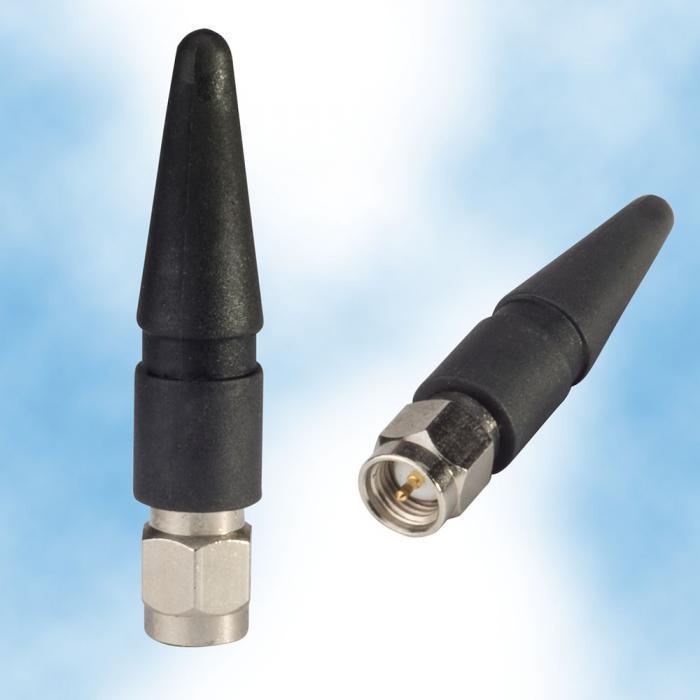

Frequency: 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas
Mountings: Portable
Polarity: Vertical
Gain: 3 dBi
VSWR: 1.5 : 1
Dimensions: Height: 50 mm / Width: N/A / Length: N/A / Diameter: 10 mm
Cable: 0.00 metres of N/A
Connector: SMA or SMA R/P
Power Handling: 25 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
ID : SMAM4GEX

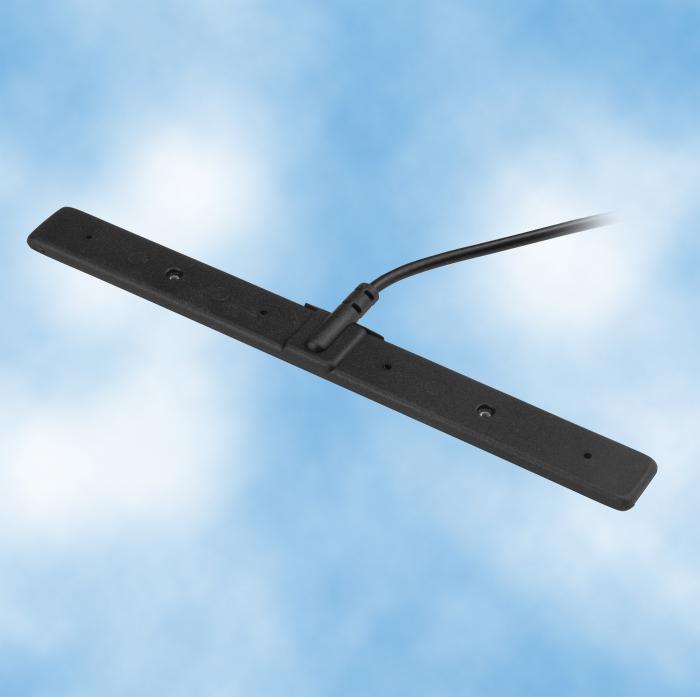

1Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / 5G LTE Antennas / LTE
Mountings: Adhesive Mount
Polarity: Vertical or Horizontal
Gain: 3 dbi
VSWR: 1.5 : 1 across the spectrum
Dimensions: Height: N/A / Width: 15 mm / Length: 145 mm / Diameter: N/A
Cable: 3.00 metres of RG174
Connector: To be specified
Power Handling: 25 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
ID : 2G3G4G5GSTRIP

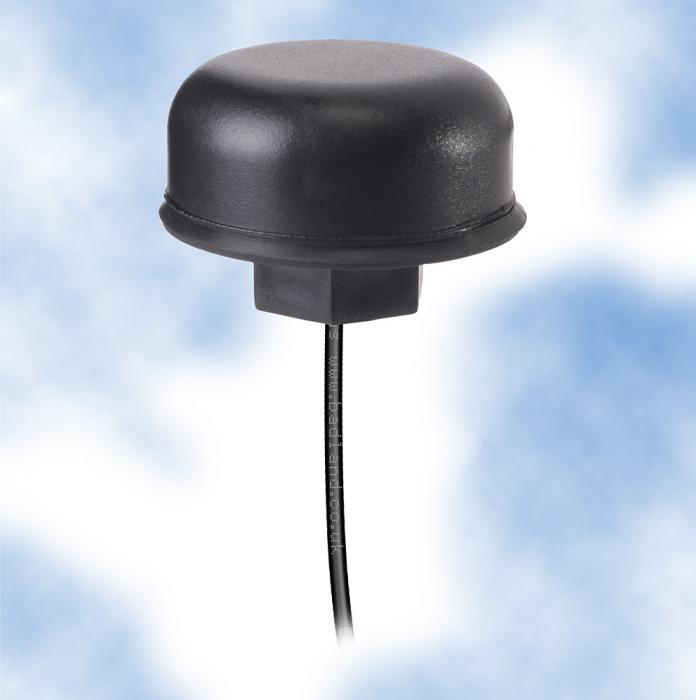

2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / GLONASS
Mountings: Fixed Body Mount
Polarity: Omnidirectional
Gain: 3 dbi
VSWR: 1.5:1
Dimensions: Height: 20 mm / Width: / Length: / Diameter: 50 mm
Cable: 3.00 metres of RG174
Connector: To Be Specified
Power Handling: 20 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
ID : LTEBDYP
3
