August 2025: From Design to Deployment
Badland has been making waves this July! With dry weather across the UK and Europe, we've been hard at work manufacturing antennas for various water boards. These antennas are helping to monitor water levels and keep an eye on drought conditions across various regions, ensuring critical infrastructure stays connected.
Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / Bluetooth / WiFi / WI-MAX / 5G LTE Antennas / LTE
Mountings: Brackets / Fixed Mounted Base Station
Polarity: Vertical
Gain: 3 dbi
VSWR: 1.2 : 1
Dimensions: Height: 14 cm / Width: 1.5 cm / Length: 14 cm / Diameter: N/A
Cable: 3.00 metres of RG174
Connector: To Be Specified
Power Handling: 30 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP68 RATED

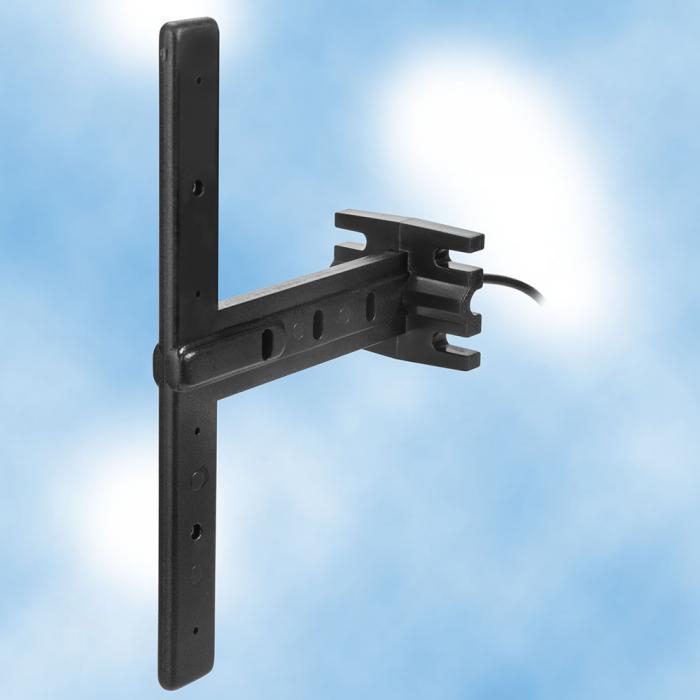

DIPOLE 2G3G4G5G WITH MOULDED BRACKET
ID : 2G3G4G5G ECODIPB
1Frequency: 3G / 4G /GPRS / GSM / LTE / GSM / 5G LTE Antennas
Mountings: Fixed Mounted Base Station / Brackets
Polarity: VERTICAL
Gain: 6 dbd
VSWR: 1.5 :1
Dimensions: Height: 550 mm form base / Width: 1 / Length: / Diameter: 1
Cable: 5.00 metres of RG58
Connector: TO BE SPECIFIED
Power Handling: 35 WATTS
Impedance: 50 OHMS
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

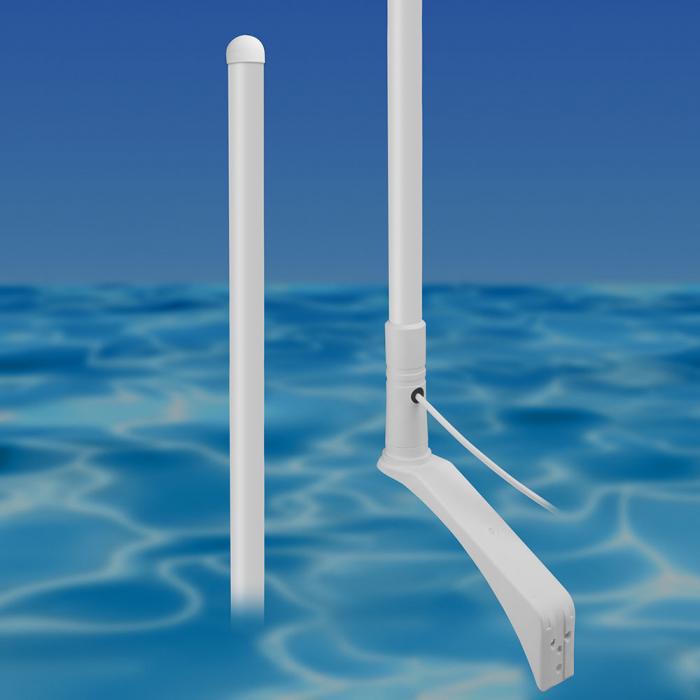

HI GAIN COLINEAR 4G/5G
ID : 4G5GCOL
2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / 5G LTE Antennas / LTE
Mountings: Fixed Body Mount
Polarity: Vertical or Horizontal
Gain: 3 dBi
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 25 mm / Width: / Length: / Diameter: 103 mm
Cable: 5.00 metres of RG174
Connector: To Be Specified
Power Handling: 20 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67

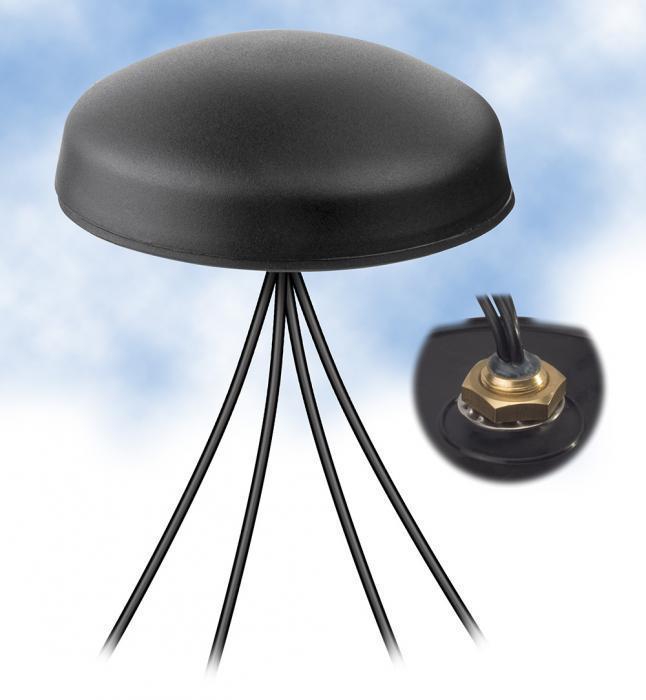

MULTIBAND BODY MOUNT ANTENNA LTE/MIMO DOME X4 CABLES
ID : 2G3G4G5G MIMODOME X4
3
